Comprehensive Analysis of Thread Scanning Technology: Features, Methodologies, and Measurement Discrepancies

1. Features of Modern Thread Scanners

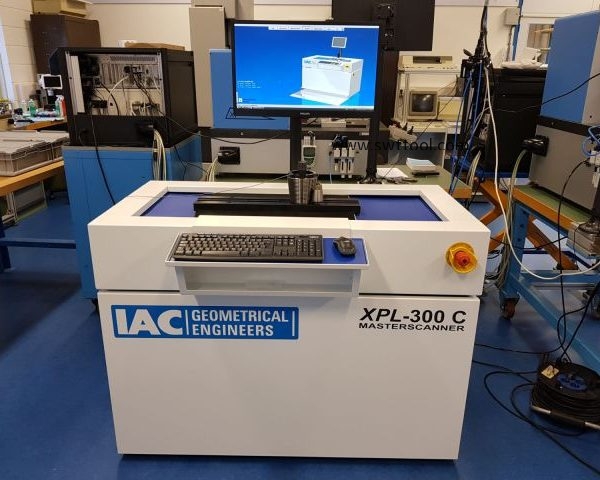

1.1 Dutch IAC Thread Scanners

The Dutch IAC MSXP series thread scanners are renowned for their high precision and compliance with international standards. Key features include:

• High Accuracy: Resolution of 0.01 µm, capable of measuring parameters such as effective pitch diameter, major/minor diameters, flank angles, and taper for internal/external threads (M2.5 to M160) with minimal uncertainty.

• Automation: Full-automatic scanning completes all measurements within 2 minutes, reducing human intervention. The system supports multiple standards (ANSI, ISO, DIN, etc.) and exports data in DXF format for CAD analysis.

• Robust Design: Utilizes air-bearing linear guides and Heidenhain glass scales for stability, ensuring compliance with ISO 9000 and VDI/DE/DGQ 2618-4.9 standards.

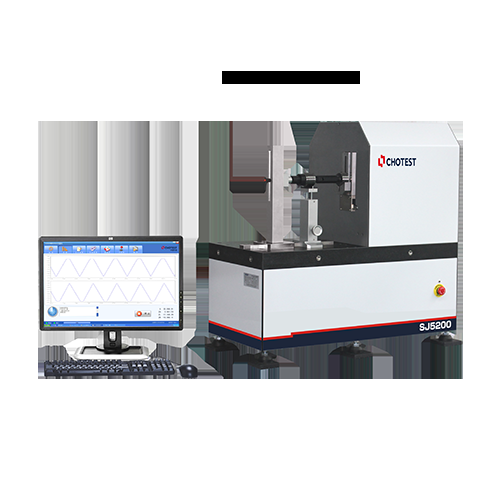

1.2 CHOTEST (Shenzhen Zhongtu) Thread Scanners

The SJ5700DUAL and SJ5780 models exemplify innovation in thread measurement:

• Active Scanning: Dual-axis (X/Z) motion control enables continuous contour scanning with constant contact force (10–150 mN adjustable), ideal for steep slopes (up to 78° ascent/87° descent).

• Versatility: Measures threads ranging from M3 to M200, including ACME, UN, and API threads, while integrating roughness and waviness analysis (Ra: 0.012–12.5 µm).

• Efficiency: CNC batch processing and automated report generation (Word, Excel, PDF) enhance productivity in aerospace and automotive industries.

2. Comparison: Thread Scanners vs. Traditional Length Measuring Machines

2.1 Methodology Differences

• Thread Scanners:

• Non-contact/Active Scanning: Mimics thread profiles dynamically, capturing comprehensive parameters (e.g., helical angle, taper) in a single scan.

• Software Integration: Built-in databases and tolerance libraries enable real-time analysis, reducing manual errors.

• Advantages:

• Limitations: Higher initial cost and specialized training requirements.

• Traditional Methods (e.g., Trimos/Mahr测长机):

• Ball/Wire Methods: Require manual alignment and multiple measurements (e.g., three-wire method for pitch diameter), increasing time and operator dependency.

• Systematic Errors: Influenced by probe wear, temperature fluctuations, and geometric deviations (e.g., thread roundness).

2.2 Factors Affecting Measurement Accuracy

• Thread Scanners:

• Environmental stability (temperature/humidity control).

• Probe calibration and wear compensation.

• Traditional Machines:

• Operator skill in probe alignment.

• Measurement force variability and thermal expansion differences.

•

3. Discrepancies in Measurement Results

For the same thread gauge, differences between scanner and traditional methods (e.g., Trimos测长机) typically arise from:

1. Methodology Variance:

• Scanners assess the functional thread profile (e.g., effective diameter under simulated working conditions), while traditional methods focus on geometric parameters (e.g., pitch diameter via ball/wire).

2. Error Sources:

• Systematic Errors: Calibration drift in traditional machines vs. software compensation in scanners.

• Random Errors: Manual probe positioning in traditional methods vs. automated scanning paths.

3. Standardization Gaps: Regional calibration protocols (e.g., PTB in Germany vs. NIM in China) may interpret tolerances differently, amplifying discrepancies.

4. Analysis of Sowant Precision Gage’s 2–3 µm Export Discrepancies

Sowant’s ACME/UN thread gauges exhibit deviations when measured abroad using Trimos or Mahr测长机. Contributing factors include:

• Equipment Variance:

• Trimos测长机 relies on ball probes, where probe diameter calibration errors (±0.25 µm) and thread form assumptions (e.g., perfect flank angles) skew results.

• Thread scanners compensate for form deviations (e.g., flank wear) dynamically, reducing such biases.

• Environmental Factors:

• Temperature variations (e.g., ±0.1°C) cause differential expansion between gauge and machine materials (e.g., steel vs. granite).

• Metrological Practices:

• International labs may adhere to stricter traceability standards (e.g., DAkkS in Germany), whereas regional labs might use less rigorous calibration cycles.

5. Conclusion

Modern thread scanners, exemplified by IAC and CHOTEST, offer unparalleled efficiency and accuracy, particularly for complex threads. However, discrepancies with traditional methods underscore the need for harmonized calibration practices and awareness of methodological biases. For exporters like Sowant, adopting scanner-based certification (compatible with international protocols) and enhancing environmental controls can mitigate cross-border measurement conflicts.

References:

• IAC MSXP specifications.

• CHOTEST SJ5700DUAL features.

• Error analysis in traditional methods.
