Mueller Gages is family owned business manufacturing a special line of precision dimensional inspection gages at our facility in San Gabriel, California.
Source: | Author:BPV thread Gauges,China HBPV thread gages supplier | Published time: 134 days ago | 216 Views | Share:
For over 65 years, Mueller Gages has provided an assortment of unique tools and gages to numerous industries and to many companies with highly recognized names. Our success has been built on an expanding base of satisfied, repeat customers.

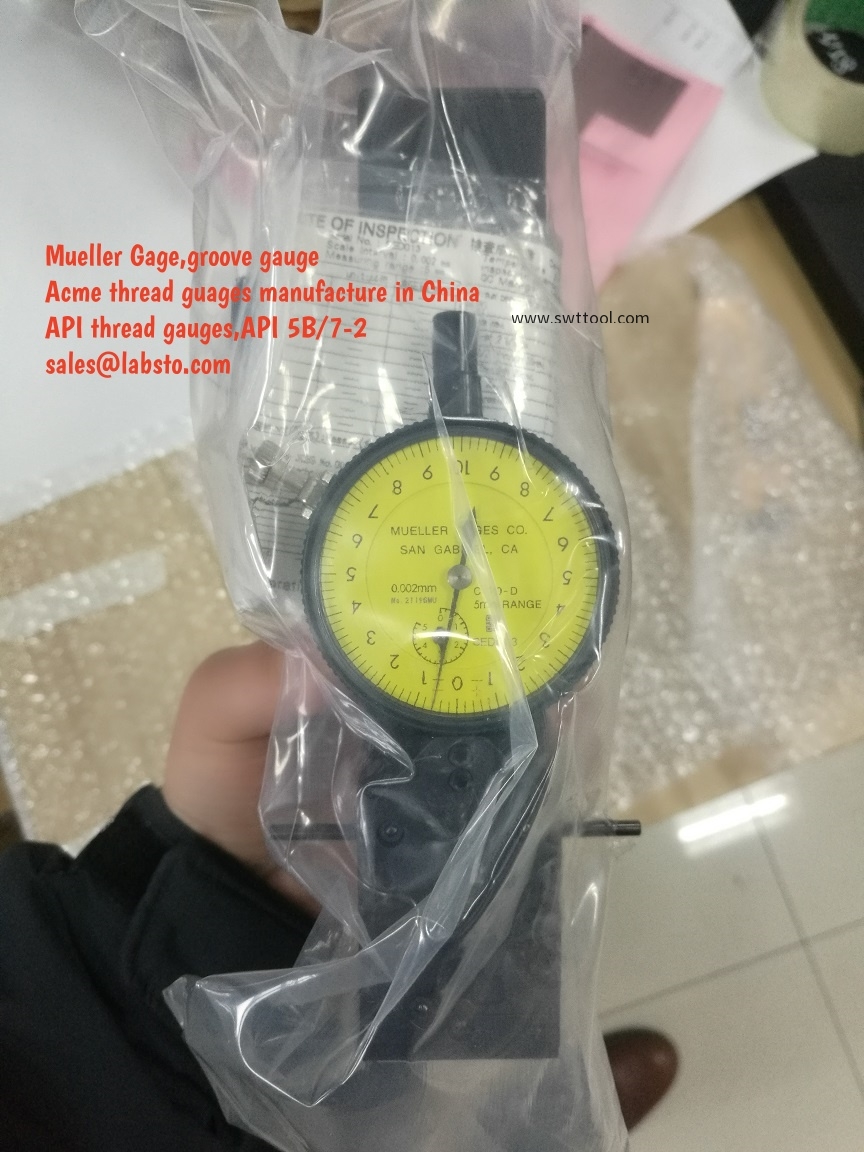

179 Series Mueller Gages Company Parallel Movement Groove Diameter Gage


Fast, Accurate Checking of Internal & External Grooves & Recesses

  • Precision Linear Guide movement

  • Measuring tips remain parallel throughout entire travel

  • Large standard diameter range from .290 to 7.900" - larger range available with optional long lower reference bar

  • Adjustable gaging pressure

  • Complete range of standard 2 point and 3 point contact measuring tips available from stock within reach up to 4 1/2 ". Tips are hardened, precision ground & hard chrome plated for long wear life

  • Special & modified standard measuring tips available for special applications. Weight of gage rests on stationary lower measuring tip - reduces possibility of operator error

  • Gage quickly & easily set with 1/4" travel fine adjustment

  • Set with micrometer, gage blocks, ring gage or qualified part

  • May be used with our 1400 series carbide ball measuring tips to check pitch diameters of gears, splines, ball races & dovetails

  • Supplied with AGD Group 1 .0005" dial indicator. .0001" & metric indicators available

  • Gage may be used with any AGD Group II style (2 1/4" dia.) Electronic digital indicator with SPC output

  • Fitted storage case available for gage and accessories



Tip No.A
Min-Max. Bore Dia. Range		B
Length of Meas. Tip		C
Width of Meas. Tip		D
Depth of Meas. Tip
UpperLower
15031503290-4.1251 1/4 .050 .110
1504 1504 730-7.187 1 1/4.040 .210
1504 *1504-3
3-point contact		730-7.187  1 1/4.040 .210
180-0180-01.050-7.3751 1/2.050 .210
180-5 180-5 1.050-7.3752 1/2.050 .210
180-10180-101.150-7.5003 1/2.050 250
180-10*180-30
3-point contact		1.150-7.5003 1/2.050 250
180-15180-151.700-7.9004 1/2 .080.500
* 3 point contact measuring tips require cylindrical master.

The following measuring tips are available with special width ('C' dimensions) at no extra charge when specified on purchase order.

Measuring Tip No.  Standard WidthSpecial Width
1503 .050 .022
1504 .040 .020

Approximate weight of gage with measuring tips is 28 oz.





ON-LINE PRODUCT LISTING

MODEL#              DESCRIPTION MODEL#              DESCRIPTION
Indicators:
1923TB-10        .0005 x .050 dial indicator
1925TB-10        .0001 x .010 dial indicator
B150-1C           .0005 x .125 dial indicator
B150-1CR        .0005 x .125 dial indicator
B160-1C          .0001 x .025 dial indicator
B160-1CR        .0001 x .025 dial indicator
B165-1D          .01mm x 2.5mm dial indicator
B170-1D          .002mm x .5mm dial indicator
C135-D            .0005 x .5 dial indicator
C140-D            .01mm x 10mm dial indicator
C170-D            .002mm x 5mm dial indicator
C402-D            .0001 x .2 dial indicator
B150-1SR        .0005 x .100 special ratio
B165-1SR        .01mm x 2.5mm special ratio
2034101           Digital/Analog Indicator

77 Series:
70M                Shallow Dia. Gage .0001
71M                Shallow Dia. Gage .0005
75M                Shallow Dia. Gage .0005
76M                Shallow Dia. Gage .0005
77M                Shallow Dia. Gage .0001
78M                Shallow Dia. Gage .0001
79-100            Contact Point Set (2 pcs.)
79-200            Contact Point Set (2 pcs.)
79-100C          Contact Point Set (2 pcs.)
79-200C          Contact Point Set (2 pcs.)
79-1-100C       Contact Point Set (2 pcs.)
79-1-200C       Contact Point Set (2 pcs.)
79-500            Contact Point Set (2 pcs.)
79-600            Contact Point Set (2 pcs.)
79-1-SP          Special Contact Set
79-2-SP          Special Contact Set
72                  Hardwood Storage Case
80                  Hardwood Storage Case
81                  Hardwood Storage Case

88 Series:

179 Series:
179 ID            Groove Dia. Gage .0005
179-ID            Groove Dia. Gage .0001
179-40            Long Ref. Rail (Exchange 75.00)
*179-50          Gage Set .0005
179-65            Adj. Gage Stops (2 pcs.)
179-200          OD Model .0005
180-0              Measuring Tip Set (2 pcs.)
180-5              Measuring Tip Set (2 pcs.)
180-10            Measuring Tip Set (2 pcs.)
180-15            Measuring Tip Set (2 pcs.)
180-30            Measuring Tip Set (2 pcs.)
180-30-           Lower Tip Only
182                Storage Case
(Also available: 1503, 1504 & 1504-3 Measuring Tips)

560 Series:
560                Shallow Dia. Gage .0005
560-1              Hardwood Storage Case
561                Shallow Dia. Gage .0005
561-1              Hardwood Storage Case
562                Shallow Dia. Gage .0005
562-1              Hardwood Storage Case
563                Shallow Dia. Gage .0005
563-1              Hardwood Storage Case
564                Shallow Dia. Gage .0005
564-1              Hardwood Storage Case
565                Shallow Dia. Gage .0005
565-1              Hardwood Storage Case
318-250C        Contact Point Set (2 pcs.)
318-SP           Special Contact Set
319-1-250C     Contact Point Set (2 pcs.)
320-T             Contact Point Set (2 pcs.)
321-1000        Contact Point Set (2 pcs.)
590                Reference Master
591                Reference Master
592                Reference Master
593                Reference Master
594                Reference Master
595                Reference Master
*600              Gage Setting Stands
602                Bench Stands

700 Series:
*700               Groove Loc. & Depth Gage
701                Measuring Base
*707               Groove Loc. & Depth Gage
708                Measuring Base
*709               Groove Loc. & Depth Gage
709-1              Extension
*711               Groove Location Gage
711-1              Extension

1400 Series:
1400               Pitch Dia. Gage .0005
1400-              Pitch Dia. Gage .0001
1400-3            Tip Set (2 pcs.) 1-1/4" inreach
1400-4            Tip Set (2 pcs.) 3-3/4" inreach
1400-35          Gage & Tip Set .0005
1400-35-         Gage & Tip Set .0001
1801               Storage Case

1550 Series:
1550              Shallow Dia./Groove Gage .0005
1550-             Shallow Dia./Groove Gage .0001
1550-1           Storage Case
1575              Measuring Tip Set (2 pcs.)
1576              Measuring Tip Set (2 pcs.)
1577              Measuring Tip Set (2 pcs.)
1578              Measuring Tip Set (2 pcs.)
1579-SP         Measuring Tip Set (2 pcs.)
1580              Measuring Tip Set (2 pcs.)
1581              Measuring Tip Set (2 pcs.)

1750 Series:
1750               Deep Inreach Groove Dia. Gage
1750-1            Hardwood Storage Case
1755               Deep Inreach Groove Dia. Gage
1755-1            Hardwood Storage Case
1760               Deep Inreach Groove Dia. Gage
1760-1            Hardwood Storage Case
1765               Deep Inreach Groove Dia. Gage
1765-1            Hardwood Storage Case
1775-0            Upper Measuring Tip
1775-0+          Upper Measuring Tip (.250 Longer)
1775-1            Lower Measuring Tip
1775-2            Lower Measuring Tip
1775-3            Lower Measuring Tip
1775-4            Lower Measuring Tip
1775-5            Lower Measuring Tip
1775-6            Lower Measuring Tip
1775-7            Lower Measuring Tip
1775-8            Lower Measuring Tip
1775-9            Lower Measuring Tip
1775-10          Lower Measuring Tip
1775               Tip Set Tip Set (10 pcs.)

2000 Series:
2002               Shallow Dia. Gage .0005
2004               Shallow Dia. Gage .0005
2005               Storage Case
2006               Storage Case
2000-10          Contact Point Set (2 pcs.)
2000-20          Contact Point Set (2 pcs.)
2000-30          Contact Point Set (2 pcs.)
2000-40          Contact Point Set (2 pcs.)
2000-50          Contact Point Set (2 pcs.)
2000-65          Contact Point Set (2 pcs.)

1900 Series:
1900               Groove Dia. Gage Body Only .0005
1900-500         Long Slide (Exchange 75.00)
1901               Groove Dia. Gage .0005
1902               Groove Dia. Gage .0005
1903               Groove Dia. Gage .0005
1904               Groove Dia. Gage .0005
1904-3            Groove Dia. Gage .0005
1915               Groove Dia. Gage .0005
1915-1            Groove Dia. Gage Body Only .0005
1915-3            Groove Dia. Gage .0005
*1918              Groove Dia. Gage Set .0005
1921               Groove Dia. Gage .0005
1922               Groove Dia. Gage .0005
1501               Measuring Tip Set (2 pcs.)
1502               Measuring Tip Set (2 pcs.)
1503               Measuring Tip Set (2 pcs.)
1504               Measuring Tip Set (2 pcs.)
1504-3            Lower Tip Only
1504-3            Measuring Tip Set (2 pcs.)
1505               Measuring Tip Set (2 pcs.)
1505-3            Lower Tip Only
1505-3            Measuring Tip Set (2 pcs.)
1600 thru 1609   Measuring Tip (Each)
1700 thru 1709    Measuring Tip (Each)
1800               Anvil
1801               Storage Case

2900 Series:
2910               Large Dia./Groove Gage .0005
2910-1            Hardwood Storage Case
2911               Large Dia./Groove Gage .0005
2911-1            Hardwood Storage Case
2912               Large Dia./Groove Gage .0005
2912-1            Hardwood Storage Case
2913               Large Dia./Groove Gage .0005
2913-1            Hardwood Storage Case
2914               Large Dia./Groove Gage .0005
2914-1            Hardwood Storage Case
2920-1&-2       Measuring Tip Set (2 pcs.)
2921-1&-2       Measuring Tip Set (2 pcs.)
2922-1&-2       Measuring Tip Set (2 pcs.)
2930-1&-2       Measuring Tip Set (2 pcs.)
2930-5            1/4 Dia. Contact w/4-48 THD
3125               Reference Master
3126               Reference Master
3127               Reference Master
3128               Reference Master
3129               Reference Master
*INDICATES GAGES SUPPLIED WITH STORAGE CASE.  (STORAGE CASES FOR ALL OTHER GAGES AVAILABLE AS EXTRA COST OPTIONS.)

GAGE MODIFICATIONS FOR SPECIAL APPLICATIONS ARE AVAILABLE

REPLACEMENT INDICATORS FOR 1900, 1400 & 1750 .0005" B150-1CR or .0001" B160-1CR

ALL PRODUCTS WILL EASILY ACCEPT AGD GROUP 2, 2-1/4" DIA. ELECTRONIC DIGITAL INDICATORS WITH EXCEPTION OF 1400, 1900 & 2000 SERIES, WHICH ARE MODIFIED.

GAGES MAY BE PURCHASED LESS DIAL INDICATORS FOR INSTALLATION OF CUSTOMER'S DIGITAL INDICATORS.
