Comprehensive Guide to TR Thread Ring Gauges: Chinese Manufacturing with High Quality

TR thread ring gauges are precision measuring instruments specifically designed for inspecting the accuracy of external trapezoidal threads. These gauges play a crucial role in manufacturing and quality control processes, ensuring that threaded components meet international standards and specifications. This article provides a comprehensive overview of TR thread ring gauges, their parameters, standards, and the high-quality manufacturing practices employed by Chinese producers.

1. Understanding TR Threads

TR threads, also known as trapezoidal threads or Acme threads, are characterized by their 30-degree thread angle and trapezoidal profile. They are primarily used for power transmission and motion transfer applications in machinery such as lathes, presses, and linear actuators due to their high load-bearing capacity and ability to withstand repetitive movements5.

The designation "TR" comes from the international standard for metric trapezoidal screws, with detailed specifications provided in ISO 2901, ISO 2902, and ISO 290323. These standards define the basic profiles, dimensions, and tolerances for TR threads.

2. Key Parameters of TR Threads

The geometry of TR threads is defined by several critical parameters:

• Major Diameter (d/D): The largest diameter of the thread, which is the nominal diameter of the screw or nut. For external threads, it's denoted as 'd', while for internal threads, it's denoted as 'D'5.

• Minor Diameter (d₃/D₁): The smallest diameter of the thread. For external threads: d₃ = d - 2h₃; for internal threads: D₁ = d - P5.

• Pitch Diameter (d₂/D₂): The diameter of an imaginary cylinder where the width of the thread and the groove are equal. It's calculated as d₂ = d - 0.5P for external threads, and D₂ = d₂ for internal threads5.

• Thread Angle (α): The angle between the thread flanks. For metric TR threads, this is consistently 30 degrees5.

• Pitch (P): The distance between corresponding points on adjacent threads3.

• Lead: The distance the nut moves parallel to the screw axis in one complete revolution. For single-start threads, lead equals pitch; for multi-start threads, lead equals pitch multiplied by the number of starts.

• Thread Height (h₃/H₄): The height of the fundamental triangle. For external threads: h₃ = 0.5P + ac, where 'ac' is the crest clearance5.

The crest clearance (ac) varies with pitch5:

• P = 1.5–5 mm: ac = 0.25 mm

• P = 6–12 mm: ac = 0.5 mm

• P = 14–44 mm: ac = 1 mm

3. TR Thread Ring Gauges

A thread ring gauge is a cylindrical gauge used to verify the correctness of external threads by checking their functional size (comprehensive size including pitch, angle, flank straightness, and diameter)16.

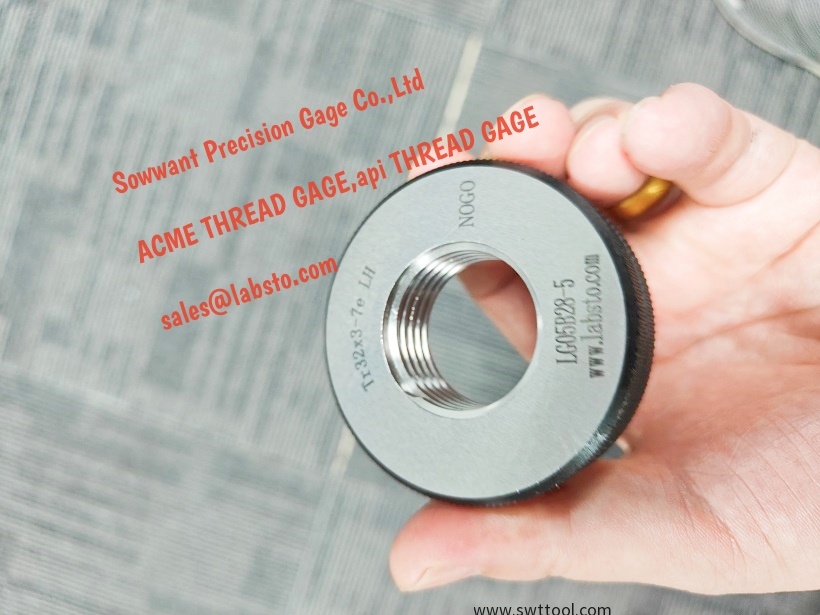

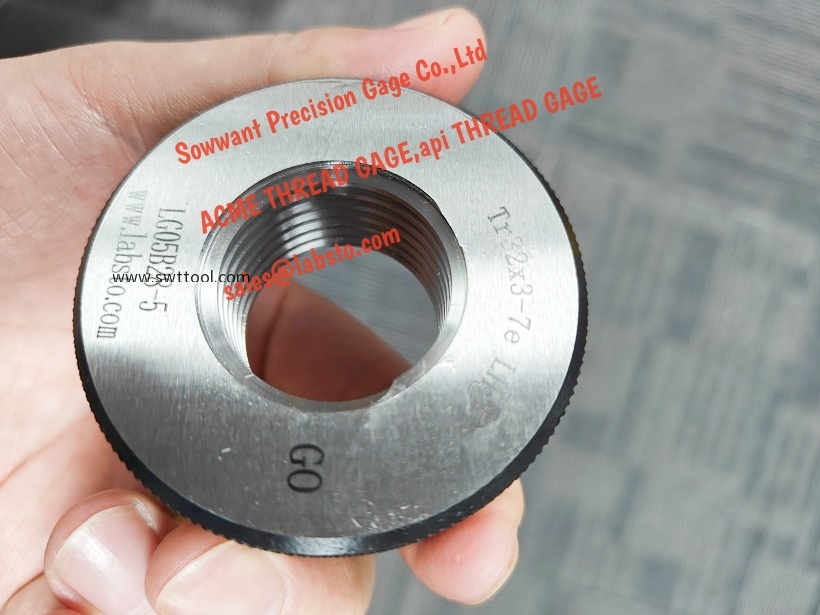

• Function: They typically come in sets of "GO" and "NO-GO" gauges. The GO gauge must freely screw onto the thread along its entire length, while the NO-GO gauge must not screw beyond two complete turns, ensuring the product thread lies within specified tolerance zones6.

• Materials: High-quality Chinese manufacturers use bearing steel (GCr15) for these gauges, which undergoes heat treatment to achieve high surface hardness (typically HRC 58-65) and exceptional wear resistance4.

• Manufacturing Precision: The manufacturing process involves precision grinding and meticulous inspection using advanced equipment like optical comparators and thread measuring machines to ensure compliance with international standards48.

4. Marking and Designation

The marking of a TR thread ring gauge follows a specific pattern that conveys key information10:

Tr [Nominal Diameter] × [Pitch] - [Tolerance Class] [LH for left-hand if applicable]

For example:

• Tr52×3-7h: Nominal diameter 52 mm, pitch 3 mm, tolerance grade 7h for external thread, right-hand (default).

• Tr52×3-7h-LH: The same thread but left-hand.

• For multi-start threads: Tr40×14(P7)LH-8e denotes a multi-start thread with nominal diameter 40 mm, lead 14 mm, pitch 7 mm, left-hand, tolerance grade 8e for external thread510.

Tolerance classes commonly used for TR threads include 7H, 8H, 9H for internal threads and 7e, 8e, 9e, 7c, 8c, 9c for external threads27. The letter indicates the position of the tolerance zone (e.g., 'e' for large allowances, 'c' for smaller allowances), and the number indicates the grade tolerance size5.

5. 40 Specifications of TR Thread Ring Gauges (Nominal Diameter >30 mm)

The following table lists 40 common specifications for TR thread ring gauges with nominal diameters exceeding 30 mm, showcasing the variety available from Chinese manufacturers. Tolerance classes like 7e, 8e, 7h, 8h are commonly specified47.

Note: LH designation for left-hand threads is not shown but is available for these specifications. Multi-start thread gauges can also be supplied7.

6. High-Quality Manufacturing in China

Chinese manufacturers of TR thread ring gauges adhere to stringent quality management systems, including ISO 9001 certification8. They utilize advanced CNC thread grinding machines (e.g., imported or domestic high-precision models) and sophisticated inspection equipment like SIP thread measuring machines, optical projectors, and hardness testers to ensure dimensional accuracy, correct form, and surface finish48.

Strict inspection protocols often involve 100% inspection of critical features and use of master setting plugs for calibration46. Furthermore, compliance with international standards like ISO 2903 ensures global compatibility and reliability of the gauges2.

7. Application and Selection Considerations

TR thread ring gauges are indispensable in industries like automotive, energy, heavy machinery, and aerospace for quality assurance of lead screws, power transmission systems, and large actuators8.

Selecting the appropriate gauge involves considering:

• Thread Specification: Nominal diameter, pitch, and tolerance class.

• Handedness: Right-hand (standard) or left-hand (LH).

• Number of Starts: Single-start or multi-start.

• Gauge Type: GO/NO-GO set, calibration grade, or working grade.

• Material and Coating: Standard bearing steel offers good wear resistance. For harsh environments, consider corrosion-resistant coatings or materials.

• Manufacturer's Quality and Certification: Choose suppliers with proven quality records and relevant certifications67.

Proper handling, regular calibration (using setting plugs), and appropriate storage are crucial for maintaining gauge accuracy over time6.

Conclusion

TR thread ring gauges are precision tools vital for ensuring the interchangeability and reliability of trapezoidal threads in mechanical systems. Chinese manufacturers have demonstrated their capability to produce high-quality TR thread ring gauges that meet international standards, offering a wide range of specifications, rigorous manufacturing processes, and reliable performance. Understanding the parameters, standards, and proper selection criteria for these gauges is essential for quality engineers and procurement specialists in precision-dependent industries.

Sowant precision gage also can offer your API REG thread ring guages, NC thread ring gauges, IF thread ring gauges, BECO thread ring guages, Sharp Vee thread ring gauge, HBPV thread ring guages,Acme thread ring guage, Stub acme thread ring gauges.
