Range: 4.5-5.0in / 114.3-127mm

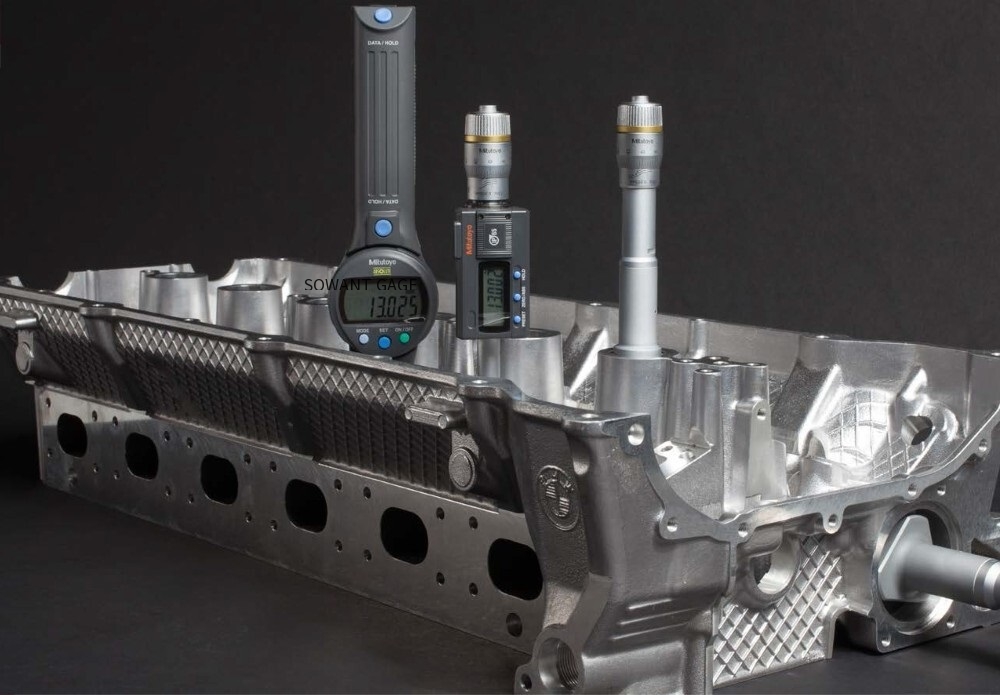

Series 568 Features

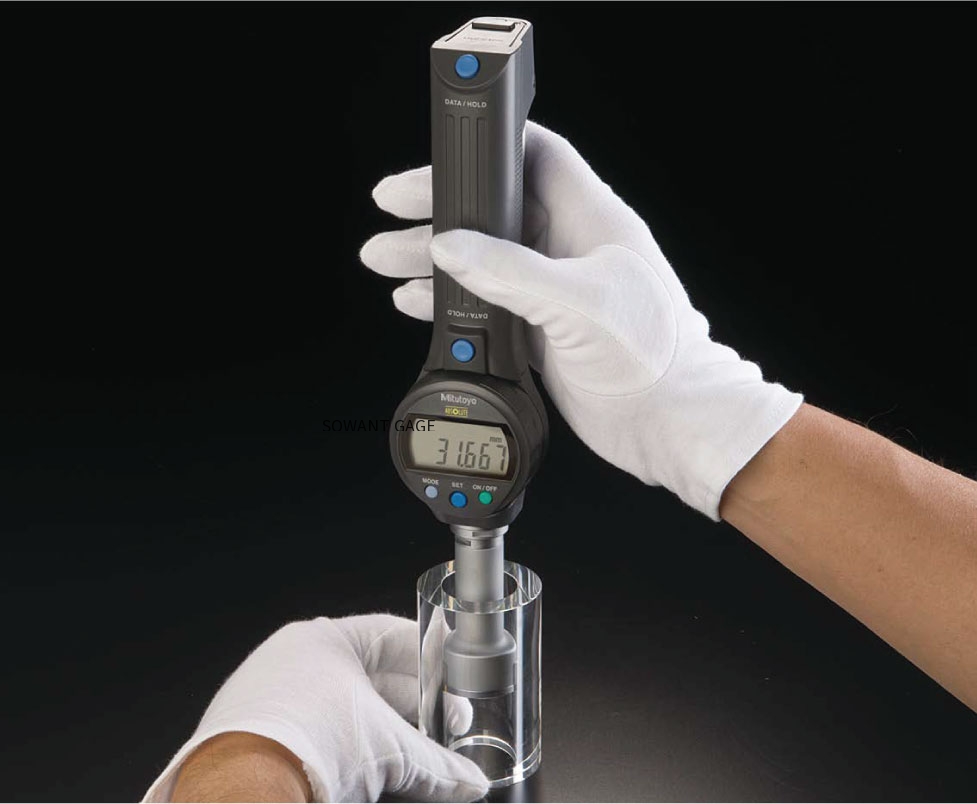

The Borematic enables the operator to take measurements more accurately and more quickly than ever before. Once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Therefore no longer repeated origin setting (presetting) is necessary.

• TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.

• Large LCD digits of 8.5mm height for error-free reading.

• 330-degree rotatable display unit for easy reading at any angle.

• GO/NO-GO judgment function.

• The ABSOLUTE linear encoder eliminates the fear of over-speed errors.

• With SPC data output.

• Setting rings for origin point setting are optional.

• Can measure deep holes by attaching an optional extension rod.

• Measurement can be taken closer to the bottom of a blind bore.

• Supplied in fitted wooden case.

echnical Data
Accuracy: Refer to the list of specifications
Resolution: 0.001mm or .00005"/0.001mm
Contact point: Carbide or titanium coating* (*over 12mm/.5" models)
Measuring method: Three-point method
Display: LCD
Battery: SR44 (1 pc.) (938882)
Battery life: Approx. 7,000 hours

Functions
Zero-Set, presetting, GO/NO-GO judgment, power on/off,
inch/mm conversion (inch/mm type only), SPC data output, data hold

Optional Accessories
905338: SPC cable (1m / 40”)
905409: SPC cable (2m / 80”)
952322: Extension rod 100mm / 3.94” For range 6-12mm / .275-.5” models
952621: Extension rod 150mm / 5.9” For range 12-20mm / .5" - .8” models
952622: Extension rod 150mm / 5.9” For range 20-50mm / .8" - 2” models
952623: Extension rod 150mm / 5.9” For range 50-300mm / 2"-12” models

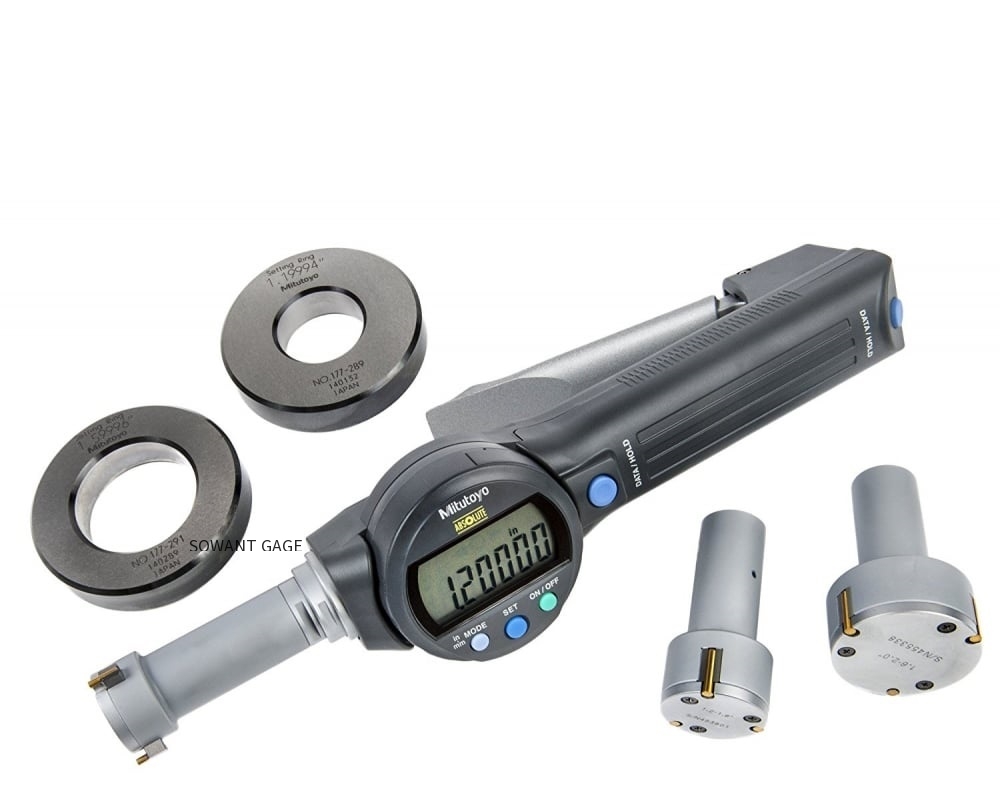

The Mitutoyo 568-463 Borematic LCD Bore Gauge has a measurement range of 0.425 to 0.5" and is accurate to + or - 0.00025". The absolute linear encoder helps reduce error, and the LCD screen offers quick and error-free measurement reading with a 330-degree rotatable unit. Three-point contact system detects lobing or triangular form error and TiN-coated contact points provide durability and impact resistance. Gradient spacing is 0.00005". The gauge has SPC data output for recording and storing measurements on a computer as well as a GO/NO-GO judgment function. Origin point is quickly set with an origin button and the gauge retains this setting for the entire battery life.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.
